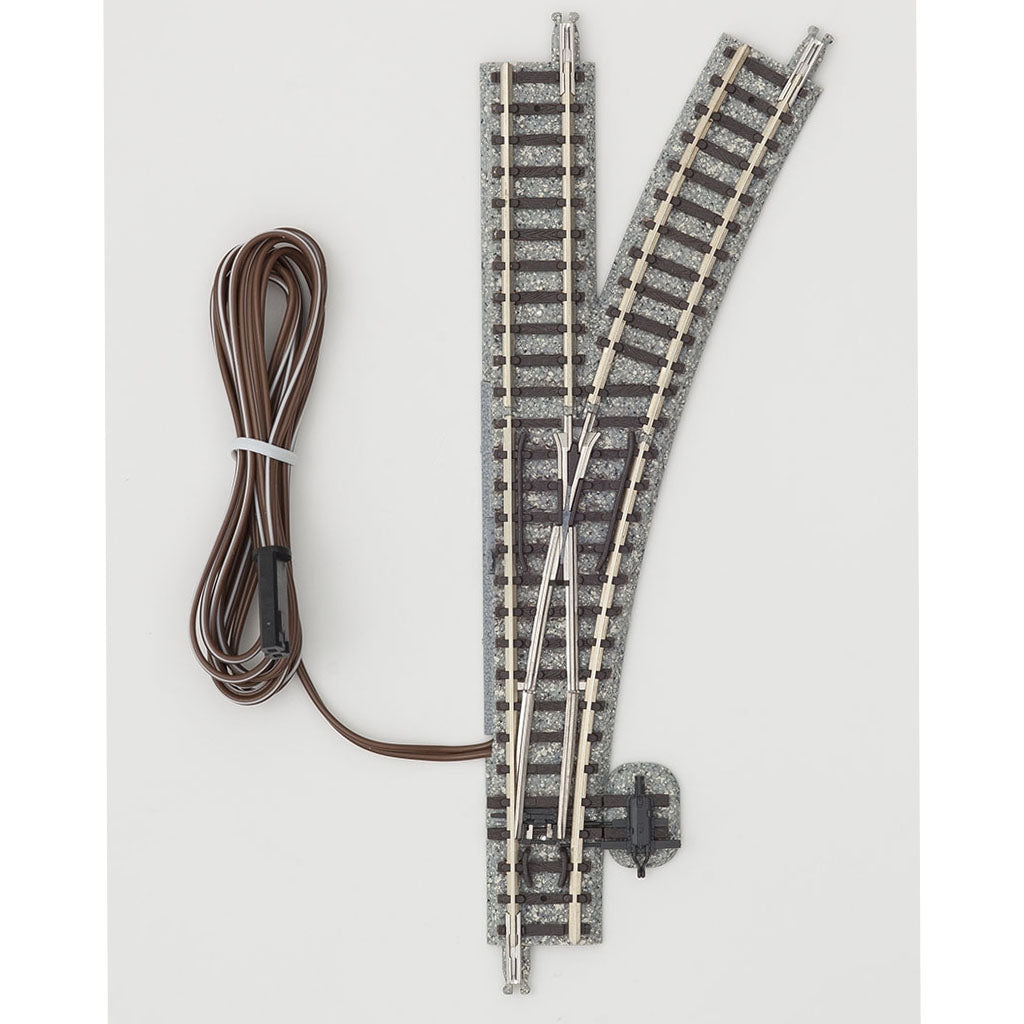

With a length of 140 mm, N-PR280-30 (F) is an electric point that branches to the right and N-PL280-30 (F) to the left with a curve radius of 280 mm and 30 degrees. Adopts a complete selection type and can also be used as a spring point.
Features
- Connection compatible with conventional TOMIX rails
- Rails are joined together with claws
- An improved joiner is used for the joiner
- Works in combination with Point Control Box N and Power Unit N
- 1 Point N drive unit common to Fine Track is built into the track bed.It is a completely selectable method that completely switches the + and - energization of the two rails in two directions using two built-in contacts, making it easy to perform reverse operation and complex point installation. Enjoy electrical wiring
- Combine with two existing C280-15 rails to branch with a double track spacing of 74mm
- Achieve a one-sided line with a double track spacing of 74mm at a distance of 280mm by using two rails
- Gaps are realized by replacing with insulated joiners (Sold separately)
- Dummy point motor, spring point sign, manual switch, sign sticker, etc. included
- Electric point N-PR280-30(F) (complete selection type)
Accessories
- Dummy point motor runner
- Dummy point switching machine runner
- Dummy point switching machine stand
- Dummy point switching machine seal
